operaCCD.h File Reference

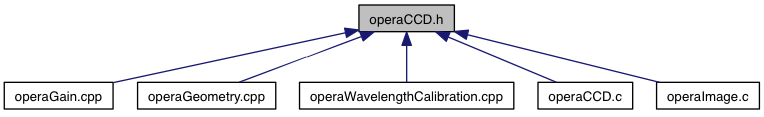

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Defines
#define	BIG   1.0e30
#define	true   1
#define	false   0
#define	PI   3.141592654
Functions
void	operaMaskPixbyCountRange (unsigned npixels, float *array, float *badpixmask, float *newmask, float minvalue, float maxvalue, unsigned char invert)
	This function creates a new mask based on a previous badpixel mask and on a defined range of values.
void	operaMarkPixbyCountRange (unsigned npixels, float *array, float *previousmarks, float *newmarks, float minvalue, float maxvalue, float index2mark)
	This function creates a mask where it marks pixels with the same number based on a defined range of values.
void	operaCCDGainNoise (unsigned npixels, unsigned nbias, float *biasdata[], unsigned nflat, float *flatdata[], float *badpixdata, float lowcount, float highcount, float maxbins, float minnpixelsperbin, float *gain, float *noise)
	This function calculates the CCD gain and noise given a set of bias and a set of flat arrays.

---

Define Documentation

#define BIG   1.0e30

#define false   0

#define PI   3.141592654

#define true   1

---

Function Documentation

void operaCCDGainNoise	(	unsigned	npixels,
		unsigned	nbias,
		float *	biasdata[],
		unsigned	nflat,
		float *	flatdata[],
		float *	badpixdata,
		float	lowcount,
		float	highcount,
		float	maxbins,
		float	minnpixelsperbin,
		float *	gain,
		float *	noise
	)

This function calculates the CCD gain and noise given a set of bias and a set of flat arrays.

void operaCCDGainNoise(unsigned npixels, unsigned nbias, float *biasdata[], unsigned nflat, float *flatdata[], float *badpixdata, float lowcount, float highcount, float maxbins, float minnpixelsperbin, float *gain, float *noise)

Parameters:

npixels	is an unsigned for the number of pixels in the arrays,
nbias	is an unsigned for the number of bias arrays,
biasdata	is an array of float pointers that contain the bias data,
nflat	is an unsigned for the number of flat arrays,
badpixdata	is a float pointer that contains the badpixel mask data,
lowcount	is a float for the lowest pixel count value to be considered
highcount	is a float for the highest pixel count value to be considered
maxbins	is a float for the number of bins to divide the range considered
minnpixelsperbin	is a float for the minimum number of pixels per bin allowed in order to consider the bin
gain	is a float pointer that returns the calculated gain value
noise	is a float pointer that returns the calculated noise value

Returns:

void

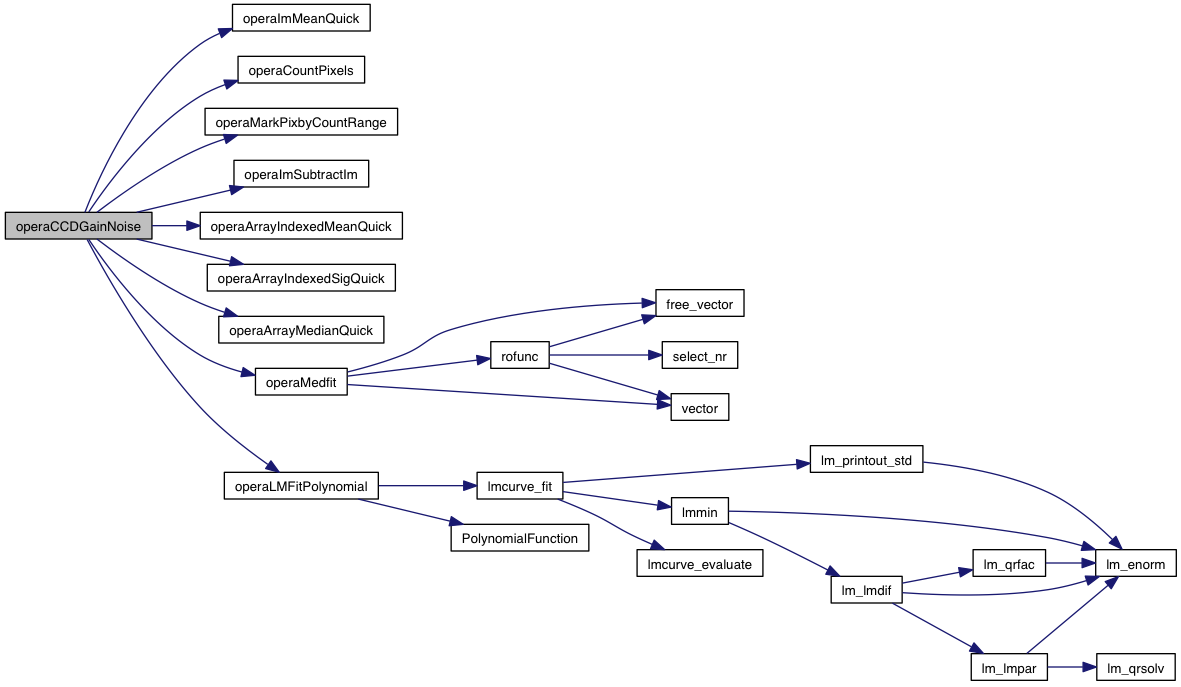

Here is the call graph for this function:

void operaMarkPixbyCountRange	(	unsigned	npixels,
		float *	array,
		float *	previousmarks,
		float *	newmarks,
		float	minvalue,
		float	maxvalue,
		float	index2mark
	)

This function creates a mask where it marks pixels with the same number based on a defined range of values.

void operaMarkPixbyCountRange(unsigned npixels, float *array, float *previousmark, float *newmark, float minvalue, float maxvalue, unsigned index2mark)

Note:

It keeps the previous mark mask values.

Parameters:

npixels	is an unsigned for the number of elements in the array
array	is a float pointer with the data
previousmarks	is a float pointer with the input badpixel mask data
newmarks	is a float pointer for the output mask
minvalue	is a float that defines the minimum data value to keep mask on (value=1)
maxvalue	is a float that defines the maximum data value to keep mask on (value=1)
index2mark	is an unsigned to mark values on the selected elements

Returns:

void

void operaMaskPixbyCountRange	(	unsigned	npixels,
		float *	array,
		float *	badpixmask,
		float *	newmask,
		float	minvalue,
		float	maxvalue,
		unsigned char	invert
	)

This function creates a new mask based on a previous badpixel mask and on a defined range of values.

void operaMaskPixbyCountRange(unsigned npixels, float *array, float *badpixmask, float *newmask, float minvalue, float maxvalue, bool invert)

Parameters:

npixels	is an unsigned for the number of elements in the array
array	is a float pointer with the data
badpixmask	is a float pointer with the input badpixel mask data
newmask	is a float pointer for the output mask
minvalue	is a float that defines the minimum data value to keep mask on (value=1)
maxvalue	is a float that defines the maximum data value to keep mask on (value=1)
invert	is a bool that allows one to invert the mask values for the selected elements

Returns:

void
